MAXIMA mobile II / BLDC model

The MAXIMA mobile II BLDC model is a portable micromotor system. Its features include:

– Slim and light-weight (Controller : 220g / Handpiece : 125g)
– Portable and easy to carry
– 9 hours of use with a 2-hour charge
– Uses a Brushless motor
– Versatile for a wide range of applications, especially ideal for light work
– Easy operation that anyone can use

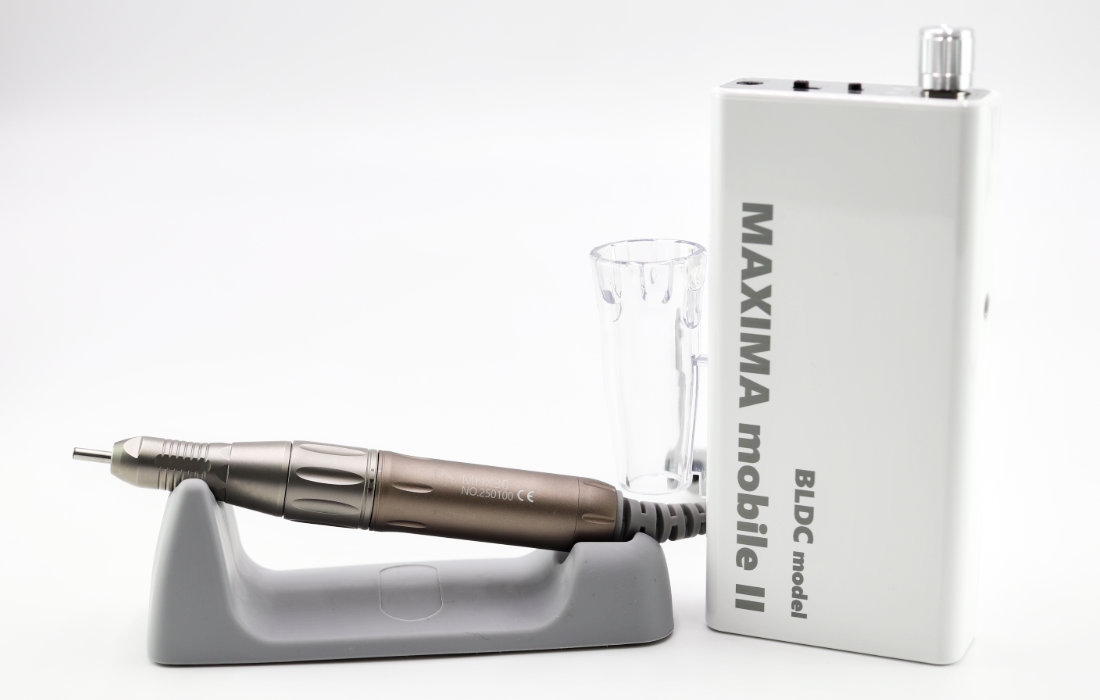

  • MMX30ST

    Mobile Controller MPX30 + MHX30 BLDC handpiece Set

    MMX30ST
    Mobile Controller MPX30 + MHX30 Brushless type motor handpiece
    Max. Rotation speed is 30,000 rpm
    Hand piece weighs just 125 grams

    The compact and lightweight handpiece features a state-of-theart brushless motor (BLDC), eliminating the need for carbon brush replacement. Its smooth and stable operation ensures safe and comfortable use. The handpiece provides a max. rotation speed of 30,000 rpm.

    An integrated overload protection function helps prevent excessive grinding of the workpiece, providing additional operational safety and peace of mind.

    Rotation speed is clearly indicated via a color-coded LED display allowing users to monitor performance at a glance.
    The intuitive design makes the system easy and enjoyable for anyone to operate.

  • 　

    　

    　

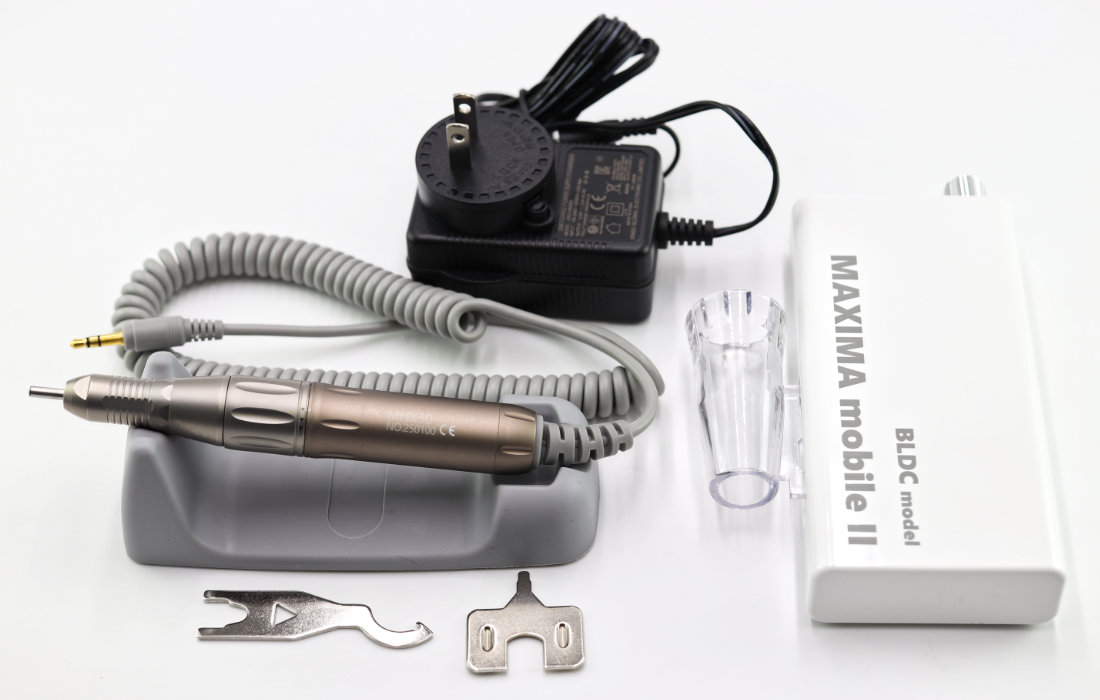

    Package contents
    • BLDC motor handpiece MHX30
    • Mobile Controller MPX30
    • AC adaptor ACP05
    • Handpiece stand TRC05
    • Handpiece holder HPH01
    • Chuck wrench & Chuck joint wrench PHP35-300 & PHP35-301
  • Overload protection
  • Rotation Direction Change
  • Quick Chuck System
Description of each icon

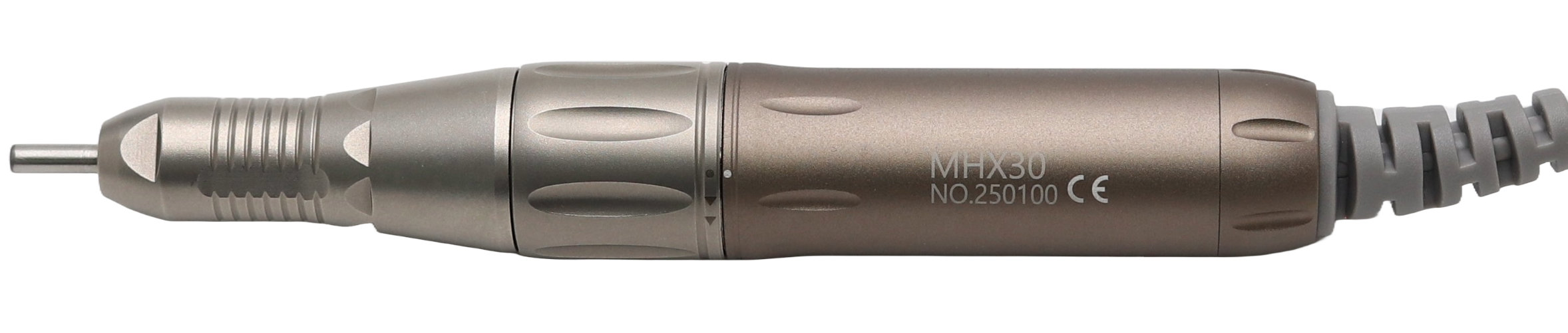

  • MHX30

    MHX30

    Brushless Motor handpiece

    - Brushless motor type (BLDC)
    - Light weight
    - Easy to handle
    - Quick Chuck system

    Max.Torque Output
    2.4N㎝
    Rotation speed
    0 ~ 30,000rpm/min
    Weight
    125g
    Dimension
    φ20 × L123mm

    * Tip Tool is optional item.
    *Collet chuck comes standard with a 3.0mm dia. but you can also select a 2.35mm dia. or 3.175mm dia. when ordering.

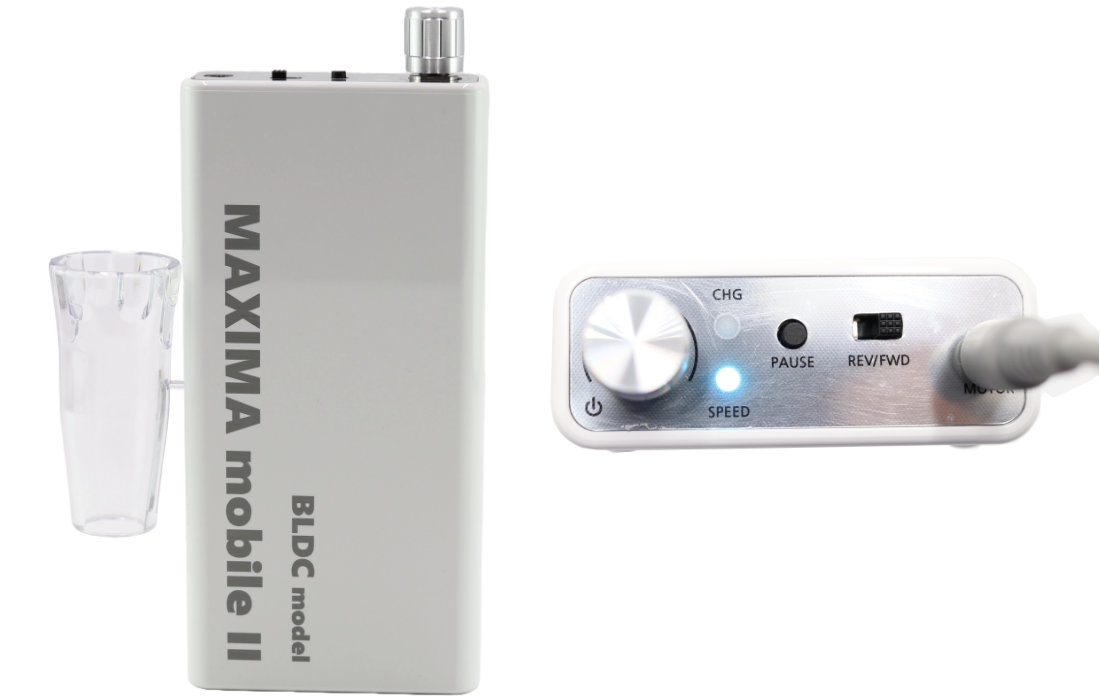

  • MPX30

    MPX30

    MAXIMA mobile II Controller

    - 9 hours of operation on just a 2-hour charge
    - Overload protection
    - Forward / Reverse direction switch
    - Pause function
    - LI-ION battery (rechargeable)
    - Speed display LED lamp (Green->Sky blue->Blue->Pink)

    Input Voltage
    12.6Vdc
    Output Voltage
    12Vdc
    Output Power
    35W
    Weight
    220g
    Dimension (mm)
    65(W) x 147(D) x 25(H)

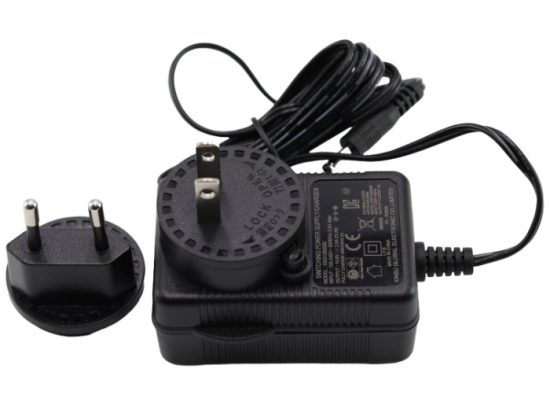

  • ACP05

    ACP05

    AC Adaptor (Charger)

    Weight
    140g
    Input
    100-240V, 50/60Hz
    Output
    12.6Vdc, 2A

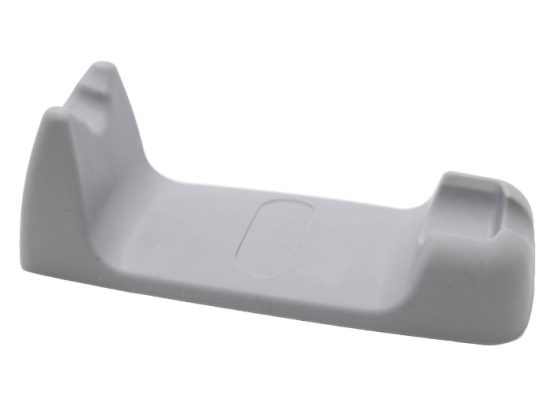

  • TRC05

    TRC05

    Handpiece Cradle

    Weight
    60g
    Dimension (mm)
    48(W) x 125(D) x 42(H)

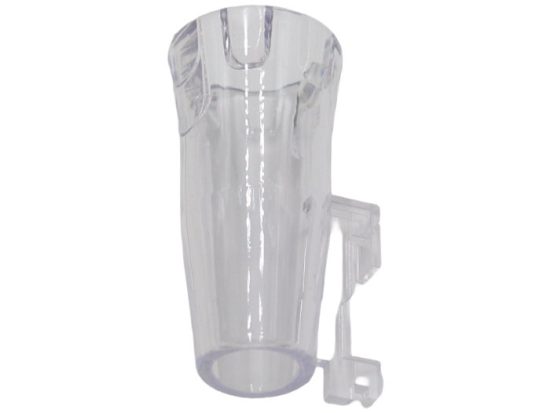

  • HPH01

    HPH01

    Handpiece Holder

    Weight
    20g
    Dimension (mm)
    28(D) x 18(D) x 60(H)

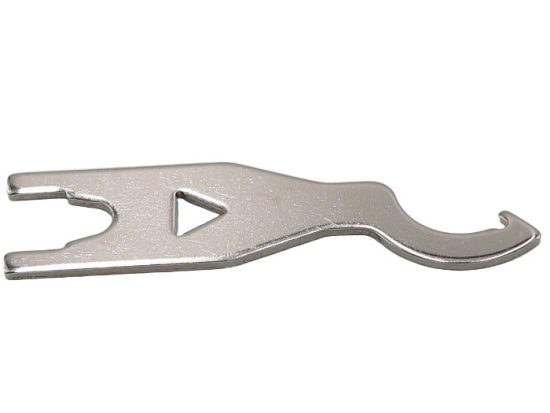

  • PHP35-300

    PHP35-300

    Chuck Wrench

  • PHP35-301

    PHP35-301

    Chuck Joint Wrench
